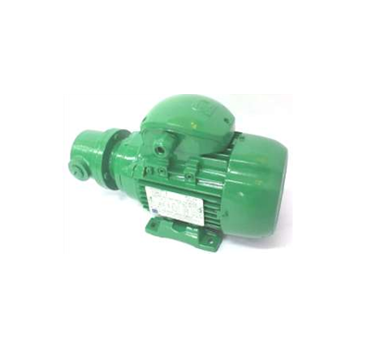

RT Series -
LOBE (TROCHOIDAL) PUMPS
Operating Range:
- Capacity Outlet – 03 – 200 lpm
- Pressure – Up to 8 bar
- Viscosity – 6 – 1500 cSt
- Temperature – Upto 80°C
- Speed- Up to 1450 rpm
- Seal- Oil Seal (Nitrile) / Gland / Mechanical Seal
- Rotation – Anti-clockwise facing pump drive shaft
Application:
- Transfer of lubricating oils
- Pressure lubrication and cooling of bearings
- Oil circulation through cooler, gear lubrications, etc.
- Transfer of fuel oils
- Boosting of fuel oil pressure for oil burner service and fuel injection pumps
Segments:
- Power Generation
- Oil & Gas
- Machine Tool
- Cement
- Steel
RTBP Series -
LOBE (TROCHOIDAL) PUMPS
OPERATING RANGE:
- Capacity :10 – 40 lpm
- Outlet Pressure : Up to 6 bar
- Viscosity -6 – 750 cSt
- Temperature – Up to 80°C
- Speed- Up to 1450 rpm
- Drive – Direct only
APPLICATION:
- Transfer of lubricating oils
- Pressure lubrication and cooling of bearings
- Oil circulation through cooler, gear lubrications, etc.
- Transfer of fuel oils
SEGMENT:
- Power Generation
- Oil & Gas
- Machine Tool
- Cement
- Steel
SL Series -
SHUTTLE BLOCK PUMPS
OPERATING RANGE:
- Capacity- 220 – 970 lpm
- Outlet Pressure- Up to 6 bar
- Viscosity- 3 – 5000 cSt
- Temperature- Up to 140°C
- Speed- Up to 1450 rpm
- Drive- Direct / V-belt
- Seal-Gland Packing / Mechanical seal
- Anti-clockwise facing pump drive shaft
APPLICATION:
- Loading, unloading, transfer, circulation and process pumping of a very wide range of products typically as thin as diesel oil to extremely high viscous substances
- Unloading of tank lorries and rail car
- Loading of rail cars, tank lorries and barrel filling.
SEGMENT:
- Oil & Gas
- Food Processing
- Petrochemical
- Chemical

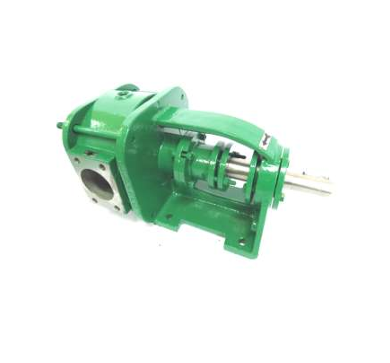

IG Series -
INTERNAL GEAR PUMPS
OPERATING RANGE:
- Seal- Non Asbestos Gland Pack / Mechanical Seal
- Capacity – 70 – 800 lpm
- Outlet Pressure – Up to 7 bar
- Viscosity – 40 – 1,00,000 cSt
- Temperature – Up to 200°C
- Speed- Up to 1450 rpm
- Drive – Direct Only
- Rotation- Anti-clockwise facing pump drive shaft
APPLICATION:
- Loading, unloading, transfer, circulation and process pumping of a very wide range of products typically as thin as diesel oil to extremely high viscous substances
- Unloading of tank lorries and rail car
- Loading of rail cars, tank lorries and barrel filling
SEGMENT:
- Food & Beverages
- Pharmaceutical
- Chemical

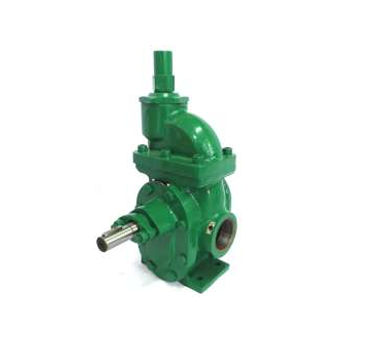

EG Series -
EXTERNAL GEAR PUMPS
OPERATING RANGE:
- Seal- Non Asbestos Gland Pack / Mechanical seal
- Capacity- 125 – 850 lpm
- Outlet Pressure – Up to 10 bar
- Viscosity – 6 – 5000 cSt
- Temperature- Up to 140°C
- Speed- Up to 1450 rpm
- Drive- Direct Only
- Rotation- Anti-clockwise facing pump drive shaft
Application:
- Transfer, booster and Process pumping for general industry needs
- Unloading of tank lorries and rail car
- Loading of rail cars, tank lorries and barrel filling
SEGMENTS:
- Power Generation
- Steel
- Paint
- Chemical
- Oil Depots

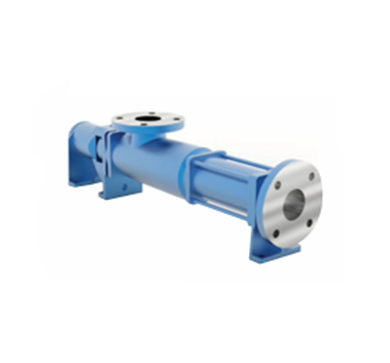

SINGLE SCREW PUMP.
OPERATING RANGE:
- Series- T1S, T1SB
- Model- 25, 50, 100, 200, 380, 550, 750, 1450, 2700, SMP2
- Capacity- 25 to 2700 lpm
- Mounting- Horizontal, Vertical
- Sealing- Gland Packing and Mechanical Sealing
- Viscosity Range – 1 to 100,000 cSt
- Temperature- Up to 150°C
APPLICATION:
Utilized in all segment of chemical and petro chemical industry, but also for wastewater and environmental engineering, Food and pharmaceutical industry, pulp and paper industry
ADVANTAGES:
- No deposits inside the casing
- No bridge forming
- Vibration free, higher operating speed
- Cavity lines can be constructed with stainless steel & 10 standard elastomer materials.
- Easy disassembled
- Easy maintenance

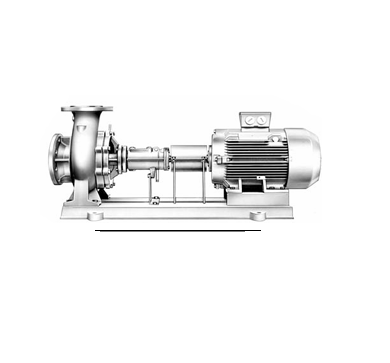

ALLWEILER NTT PUMP
APPLICATION:
- Chemical and pharmaceutical industry: Heating and drying plants, stirring apparatuses, autoclaves, reaction tanks, in plants for the production of synthetic fibres, plastics, lacquer raw materials, in mixing and storage facilities for viscous media.
- High temp hot oil temperature range 0-220*c used for various high temp thermic fluid
- Food industry: Heating of baking and roasting ovens, plants for the production of fatty acids, edible oils, glycerin, and dry pastes.
- Textile, leather and paper industry: Heating of calendars, drying chambers, rolls, drying cylinders.
- Rubber and plastic industry: Heating of presses, automatic injection, molding machines, calendars, fusion kettles.
- Paint and lacquer industry: Heating of agitators and mixing vessels.
- Tar and bitumen-processing industry: Heating of storage tanks, tankers, for heating up heavy oil, in asphalt processing and roofing-felt production.
- Mineral-oil industry: Heating of transportation means, pipes and storage installations, for pre-heating of oils, in the bitumen production.
- Laundries: Heating of dryers, hot mangles, automatic ironing machines. Additionally, for the most varied fields of application in the metal-working industry, electrical-engineering industry, wood industry, building industry.
