Darling Pumps
Darling Pumps
SUBMERSIBLE CLEAR & RAW WATER PUMPS:
OPERATING RANGE:
- RATING:UPTO 220 KW
- FLOW:UPTO 1200M3/HR
- HEAD: UPTO 160M
- INDUCTION MOTOR :DRY TYPE.
- DEGREE OF PROTECTION: IP68
- SPEED:2900/1450 RPM
- STARTING: DOL/STAR DELTA
APPLICATION:
- RIVER WATER PUMPING
- INTAKE WATER SUPPLY FOR VARIOUS INDUSTRIES
- WATER TREATMENT PLANTS
- SEA WATERING PUMPING
- IRRIGATION PROJECTS
- WATER SUPPLY SCHEMES
- FIRE FIGHTING
- COOLING TOWER
- DRY DOCK APPLICATION
- FLOOD CONTROL
SUBMERSIBLE WASTE WATER & SEWAGE PUMPS
OPERATING RANGE:
- RATING:UPTO 220 KW
- FLOW:UPTO 2100M3/HR
- HEAD: UPTO 160M
- INDUCTION MOTOR :DRY TYPE.
- DEGREE OF PROTECTION: IP68
- SPEED:2900/1450/960 RPM
- STARTING: DOL/STAR DELTA
APPLICATION:
- RAW & UN SCREEND SEWAGE
- INDUSTRIAL WASTE& EFFLUENT
- MUNICIPAL SEWER LINES
- TAILING PONDS
- SEWAGE TREATMENT PLANTS
- EFFULENT TREATMENT PLANTS
- TANNING UNIT
- RIVER CLEANING PROJECTS
- PHARMECEUTICAL PLANTS
- PORTABLE DEWATERING
- CABLE TRENCH PITS
SUBMERSIBLE DEWATERING PUMPS
OPERATING RANGE:
- RATING:UPTO 90 KW
- FLOW:UPTO 500M3/HR
- HEAD: UPTO 140M
- INDUCTION MOTOR :DRY TYPE.
- DEGREE OF PROTECTION: IP68
- SPEED:2900/1450 RPM
- STARTING: DOL/STAR DELTA
APPLICATION:
- BASEMENT& STROMWATER DEWATERING
- PUMPING HEAVILYCONTAMINATED WATER WITH SAND GRAVEL AND SLUDGE
- INDUSTRIAL DEWATRING
- FLOOD RELIEF PUMP
- DAM SITES & DEEP EXCAVATION
- BUILDING BRIDGES
- MICRO TUNEL PROJECT
- UNDERGROUND CIVIL PROJECT
- DE-SETING OF WATER

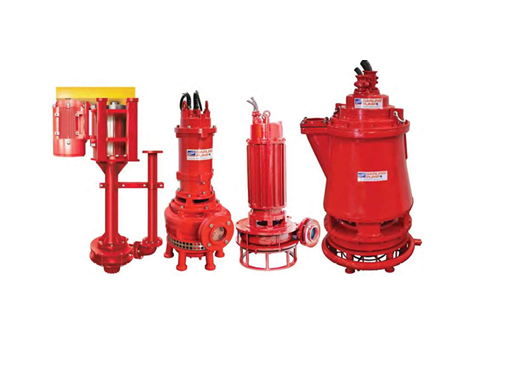

SUBMERSIBLE SLURRY PUMP
OPERATING RANGE:
- RATING:UPTO 186 KW
- FLOW:UPTO 1200M3/HR
- HEAD: UPTO 100M
- INDUCTION MOTOR :DRY TYPE.
- DEGREE OF PROTECTION: IP68
- SPEED:1450 RPM
- STARTING: DOL/STAR DELTA
APPLICATION:
- Highly abrasive slurry
- Mill scale slurry
- Iron ore & pallet slurries
- Mineral ore processing unit
- Ash handling plants
- Coal handling plants
- Granite marble slurry
- Industrial waste removal
- Jack well/in-take well cleaning
- Removal of sand deposition at dart galleries & penstock tunnels
SUBMERSIBLE SPECIAL APPLICATION PUMPS - HT SERIES
Application:
Used for kind of hot water pumping
- Power plants
- Steel plants
- Pharma units for many more similar applications in industrial and general hotwater pumping
Technical specification:
- Rating: upto 220 kw
- Flow: upto2100 m/hr
- Head: upto 140m
- Induction motor : Dry/ wet type
- Degree of protection : IP68
- Speed: 2900/1450 rpm

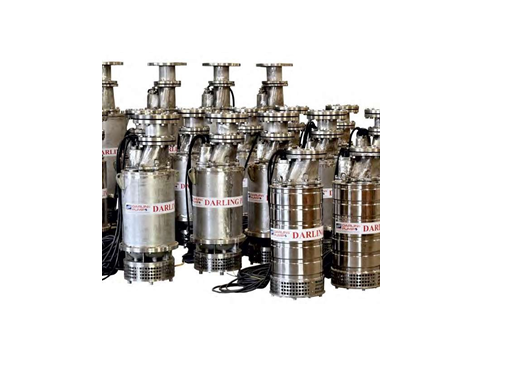

SUBMERSIBLE SPECIAL APPLICATION PUMPS - SS SERIES
Application:
All kind of aggressive liquid in various industries such as
- Sea water
- Port trust
- Dry dock
- Marine water and shipyards and many more such applications.
Process data:
- Liquid temp: 5*c to 90 *c max
- Liquid density: 2.8 gm/cc
- Liquid PH: 2 – 14
- Max solid size : upto 100mm
- Solid concentration : 65% by weight
