HOT AIR EXHAUST – FRESH AIR INLET

CAPACITIES

FLOW RATES UPTO 60 M3/SEC – PRESSURE UPTO – 1000-1200 PA

• Standard sizes from 315mm to 1610mm diameter
• Electrical supply – 3Ph, 415V ± 10%, 50Hz ± 3%,
• Suitable for 50 deg C ambient temperature, 250 deg C for 2 hrs, & 300 deg C for 2 hrs

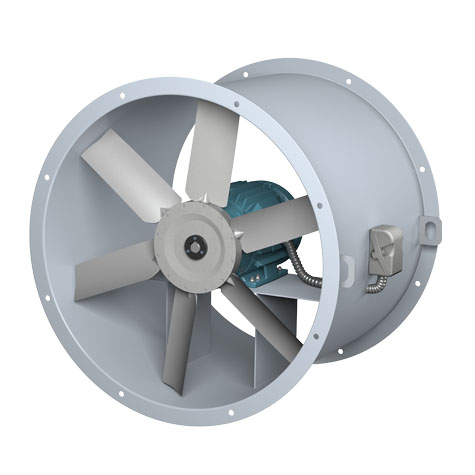

  FAN DESIGN & PERFORMANCE:
  • The impeller is mounted directly on the motor shaft to reduce the coupling & belt losses
  • Motors are provided with ‘flying leads’ so that the supply cables can be terminated at the terminal box mounted
    on the casing
  • The specially designed blade profile and pitch angles deliver air with optimum effeciency, saving energy on running
    costs over the life-cycle
  • The blade pitch is factory set so as to achieve a non-over loading fan characteristics
  • TAF aerofoil fans are natural lower noise level fans and ensure savings in noise attenuation
